Manufacturing watch spring bars: tube and pin machining, spring selection and inspection

A watch spring bar connects a conventional strap to the case through a thin tube and two retractable pins. Reliable attachment requires adequate pin engagement, smooth return and resistance to deformation and corrosion. The case, strap and bar must be reviewed as an assembly.

1. Construction and load paths

A typical bar contains two plungers and a compression coil spring inside a tube. Crimped tube ends retain the internal pin heads. Each pin has a guided head, a neck, a tip and, where required, a shoulder for a removal tool. The pin stops at a shoulder, an internal travel limit or the lug-hole bottom, depending on the assembly.

The spring pushes the pins outward. This axial return force differs from the force pulling the strap: transverse loads act through tube bending, pin shear and bending, and bearing contact in the lug holes. A stronger coil alone does not establish a higher attachment load rating.

• Single shoulder: one collar provides a tool contact face.
• Double shoulder: a groove between two collars locates a forked tool; thin edges require burr control.
• Shoulderless: the tip can be pushed from outside a drilled-through lug.
• Heavy tube: a larger section improves bending resistance, but tube and tip diameters remain separate dimensions.
• Quick release: an external lever moves a pin. The slot, remaining tube section and spring space require separate verification.

The first interactive model shows free, pressed and fitted states, a section view and both shoulder forms. Its pin-press percentage describes travel from the reference position, not coil strain or measured product performance.

2. Nominal size and useful engagement

Nominal sizes such as 18, 20 and 22 mm usually identify the intended lug width. Drawings should separately define free overall length L₀, minimum compressed length Lmin, each pin’s travel and useful cylindrical tip length. For straight insertion with both pins compressed, Lmin must clear the smallest lug width. Inserting one tip first also requires checking the insertion path and strap interference.

A supplier drawing of a 1.8 mm-class double-shoulder bar gives a 0.8 ±0.02 mm tip, a 1.5 mm shoulder with +0/−0.05 mm tolerance and a 1.25 ±0.05 mm neck. Its 20 mm version lists L1 = 20.0 (+0/−0.25), L2 = 23.1 (±0.30) and tube length = 16.7 (+0/−0.15) mm. These are one manufacturer’s values, not universal requirements.

A one-sided tolerance on L1 does not establish a fully compressed measurement. Nor does (L2−L1)/2 = 1.55 mm prove engagement or stroke. Shoulder and neck geometry, travel stops and useful hole depth remain relevant. The drawing identifies a 1.8 mm-class OD, while its tube material row lists 1.78 ×0.11 ×16.7 mm; calculations must identify which value is used.

3. Tube preparation, pin turning and crimping

Fine tubing is cut without crushing its ends. Internal burrs obstruct the pin head; external burrs damage the strap. End squareness and chamfers affect the crimp. The tip, neck, shoulders and head of a turned pin are machined on a common axis. Support near the cutting point reduces slender-stock deflection. Inspect tip diameter, collar thickness, groove width, coaxiality and the cut-off end.

Double shoulders are approximately 0.2 mm thick in the drawing example. A controlled tip radius or chamfer assists insertion. Loose burrs and cut-off pips must not remain in the sliding path. The close-up illustration shows the difference between single- and double-shoulder profiles.

Austenitic stainless steels are common for tubes and pins. Molybdenum-bearing 316L generally offers better chloride pitting resistance than 304. PREN = Cr + 3.3Mo + 16N compares composition; it does not predict service life. Sulphur additions improve machining but can introduce pitting initiation sites. Specify tube, pin and spring materials individually, along with plating and cleaning.

After inserting the pin–spring–pin assembly, crimp the tube ends to retain the heads. Too little retention can release a pin; excessive crimp can crack the tube or grip the neck. The opening must retain the head while clearing the moving neck. Remove chips and residues and verify drainage and drying.

4. Spring force, stress, preload and solid height

The cited tube material gives a nominal bore of 1.78−2×0.11 = 1.56 mm. The drawing lists spring diameter 1.3 mm and length 14.5 mm. Confirm the spring’s measurement condition and actual clearance against tube-wall and coil-diameter tolerances.

For compression δ, F = kδ and τ = K_wGdδ/(πD²n). Total compression is δpre + sL + sR: assembly compression already present in the free bar plus the additional travel of both pins. One pin’s movement is not total coil compression. Changing wire diameter also changes the Wahl factor.

These rounded calculations assume G = 70 GPa and do not specify an actual product. Allowable stress depends on wire grade, size, treatment, surface, mean stress, stress range, cycles and environment. Halving active coils doubles rate and stress at equal compression.

Travel stops and post-forming treatment

The travel stop should act before coil bind. An estimate of solid height is Hs ≈ nt·d, using total coils nt rather than active coils n; end form changes this estimate. At maximum compression, including simultaneous operation of both pins, verify clearance above solid height, interference and buckling.

Cold-drawn and precipitation-hardening spring wires need treatment suited to their supplied condition; one ageing temperature is not universal. Presetting can control initial set where required, but is not mandatory for every spring. Validate its load and cycles rather than indiscriminately pressing every spring solid.

5. Lug machining and individual engagement

Engagement is limited by useful hole depth, shoulder contact, internal stops and available protrusion. Greater lug width reduces total overlap. Axial play or an asymmetric end piece can concentrate this loss on one side; do not assume both tips have equal engagement.

A blind drilled hole includes a conical bottom and may have an entrance chamfer. Neither necessarily provides full cylindrical support. Tip rounding also reduces effective bearing length. Check hole position, coaxiality, useful depth and both minimum engagements at the tolerance extremes. ISO 3765 provides a case–band attachment dimensional framework, including useful hole depth and fitting relationships.

The second model compares illustrative widths, depths and spring set. At reference geometry, set changes relative force from 100 to 40 while preserving geometric engagement. Wider spacing gives 61% engagement and force 38; combined with set it gives zero force. A shallow hole gives 70% engagement but force 126. These are explanatory model values, not test results or acceptance limits.

6. Tube bending and assembly strength

Load distribution depends on strap-end contact width and stiffness. For a simply supported tube under uniformly distributed total load F over support span W, Mmax = FW/8. A central point load gives FW/4, twice as much. With tube OD D and bore Di, Z = π(D⁴−Di⁴)/(32D) and nominal stress is M/Z.

Calculated section moduli for 1.50 ×0.11, 1.78 ×0.11 and an assumed 2.50 ×0.30 mm tube are about 0.156, 0.227 and 1.022 mm³, giving stress ratios 1.46, 1.00 and 0.22 under equal loading. They do not establish a complete assembly rating: pin bending, shear, hole bearing, contact width and internal support still matter.

ISO 6425:2018 includes a 200 N attachment test on a watch with its closed strap or bracelet, checking detachment and displacement. It is not a coil-force specification or a universal requirement for ordinary watches. A symmetric model gives reaction F/2 at each tip of one bar; do not simply assign half the strap tension to each spring bar at opposite watch ends.

7. Cycling, relaxation and corrosion fatigue

Compression cycling assesses return, friction and early set. Holding fixed compression assesses stress relaxation. The dominant mechanism depends on material, stress, time and temperature. Compare forces at equal displacement before and after testing and record free length. Elevated-temperature results do not directly establish years of wrist-temperature service.

Sweat and retained moisture promote pitting and crevice corrosion at tube openings and lug holes. Pits can initiate fatigue cracks. A published 302 stainless spring failure in chloride-containing printing ink illustrates this mechanism; it is not watch lifetime evidence. Distinguish tube bending cycles from displacement actually reaching the coil.

Chloride stress-corrosion risk depends on salt concentration, residual stress and surface condition as well as temperature. Control crimp damage and residues. Bent tubes, damaged shoulders, sticky pins, corrosion and weak return require assessment and replacement according to service guidance. Straightening a damaged bar does not restore verified performance.

8. Inspection and records

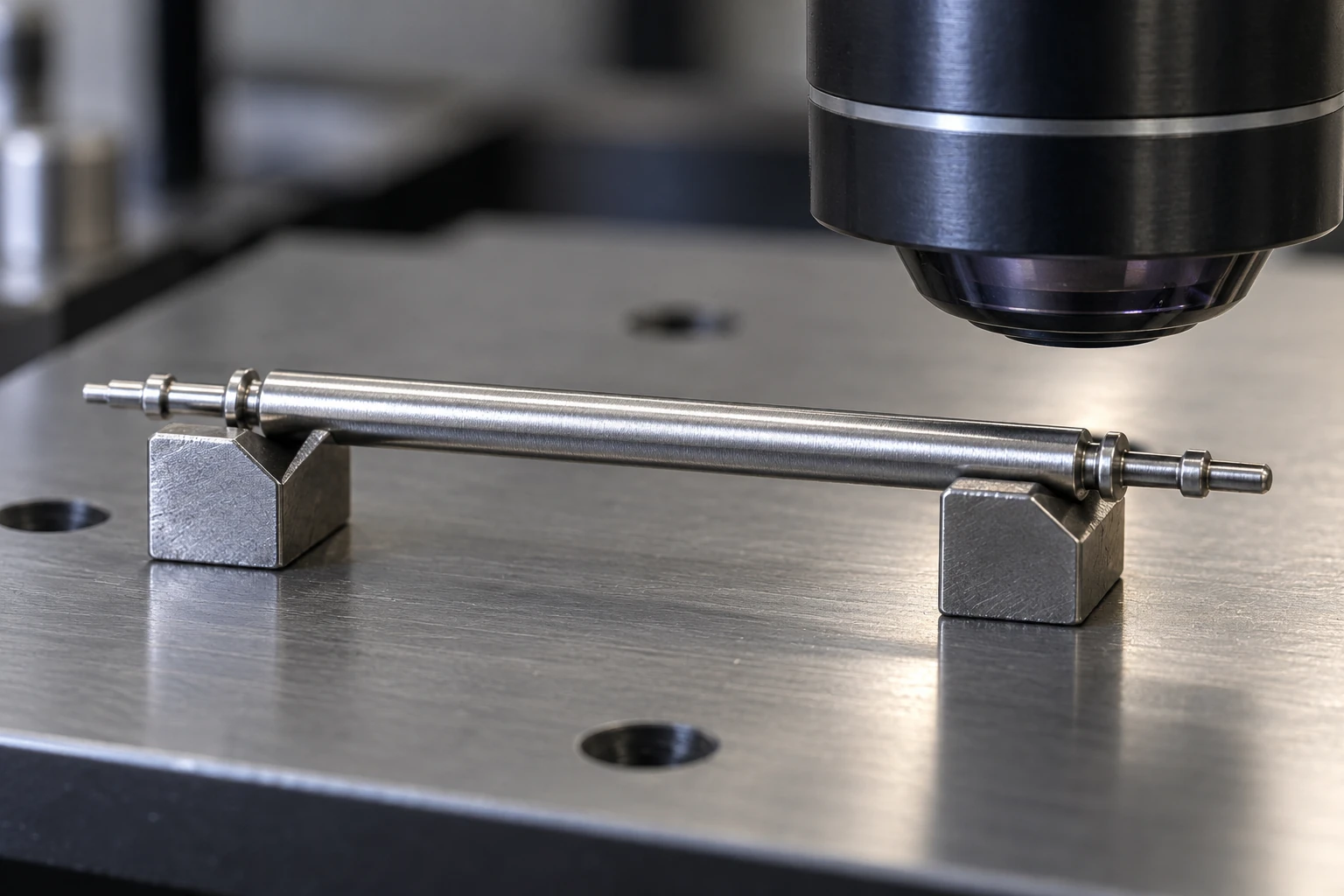

Optical measurement avoids crushing a thin tube with contact force. Inspect tip and shoulder dimensions, burrs and alignment from multiple rotational positions with supports clear of the measured feature. Separately align the pins in an axial force–displacement fixture. Record pressing and return curves, hysteresis and final return position. Reaction after a mechanical stop is reached is not coil force.

ISO 6425:2018 specifies 48-hour neutral salt spray exposure for a watch with bracelet, referring to ISO 9227. Component testing has a different scope from complete diver’s-watch qualification. Salt-spray hours are not converted directly into years of wear.

Assess nickel-release requirements for direct and prolonged skin contact. The EU limit for relevant contact articles is 0.5 µg/cm²/week. Nickel content and release are different measures. Evaluate a concealed bar’s actual exposure and select the applicable release test and coating-wear pretreatment. Retain component material and finish records, dimensions, force measurement positions and test conditions.

9. Production inputs

Provide lug width and tolerances; hole diameter, useful depth, position and blind/through configuration; strap and end-piece drawings; tube, tip and shoulder geometry; component materials and finishes; return-force range, allowable changes after cycling and holding, and assembly-load and corrosion requirements. Review lug and spring-bar drawings together to avoid a dimensionally correct component becoming an unreliable assembly.
