Precision machining of audio control knobs

A metal volume knob connects the user’s fingers to a shaft, an encoder or potentiometer, and a mounting panel. Its flutes, taper and bore must work together. A visually clean outside diameter can still wobble when the bore, fastening method or shaft alignment is inconsistent. Surface treatment and insertion depth can also change the final result.

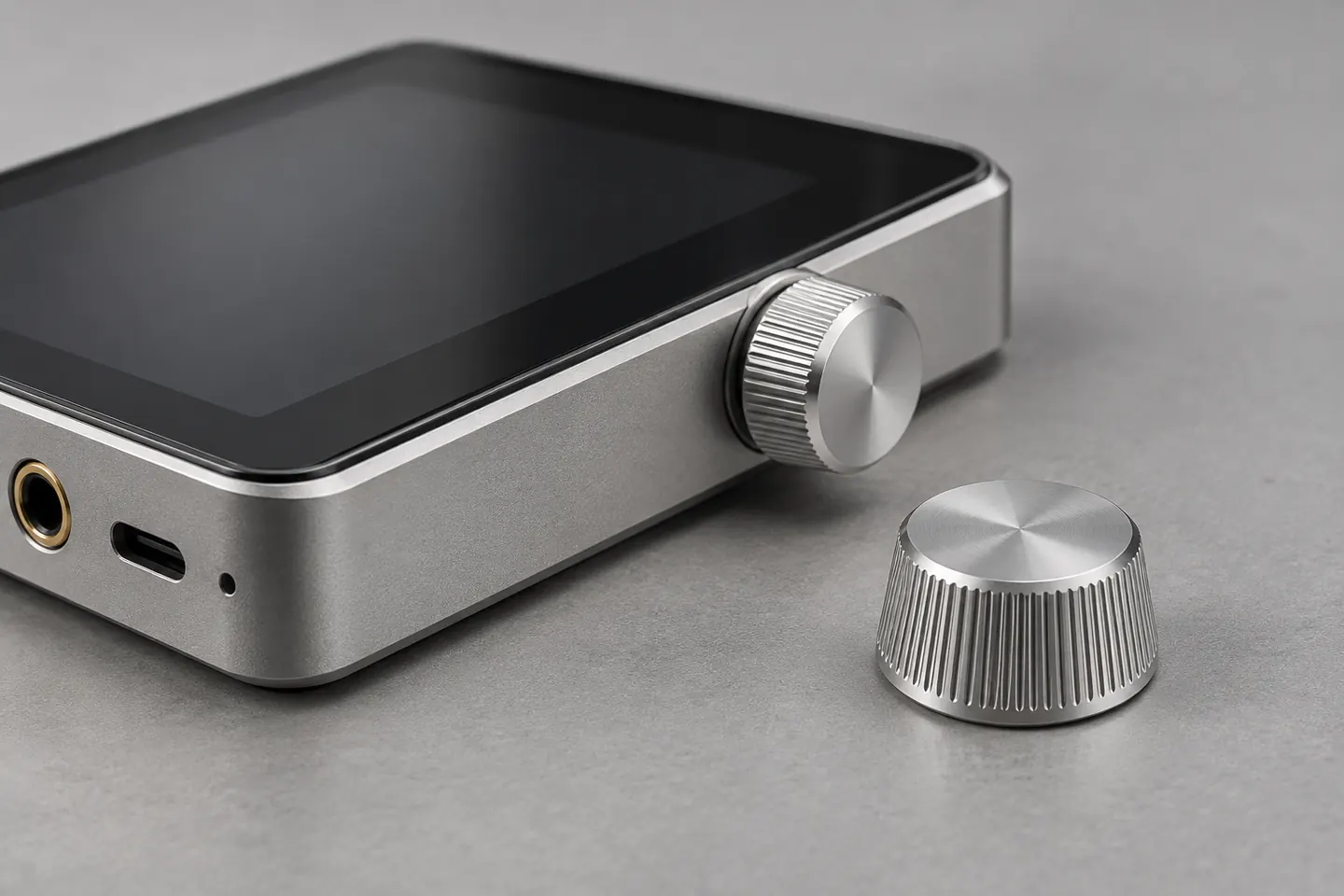

A recessed side control on a portable audio device provides limited finger access. A projecting front-panel control has different requirements for diameter, mass distribution and panel clearance. The intended installation should therefore guide the geometry before machining tolerances are assigned.

Finger force, shaft torque and rotational inertia

For a tangential finger force F_t applied at effective radius r, the transmitted torque is T = F_t · r. A larger radius reduces the tangential force required to overcome the same shaft resistance under slow motion. This force is not the normal squeezing force applied by the fingers. Surface condition, grip and contact position also influence slip.

A tapered surface changes the effective radius as the contact position moves along its height. Evaluate grip both on the loose component and in the finished product. The panel may prevent the user from reaching the same area that felt comfortable during an isolated sample review.

Rotational inertia depends on where the mass is located, not only on total weight. Mass near the rim influences acceleration, stopping and reversal. It does not remove steady-speed friction or reduce a detent’s static resistance by itself. Encoder detent count, electrical pulse count and software response are separate characteristics; a knob’s appearance does not establish resolution or audio performance.

Defining flutes on a taper

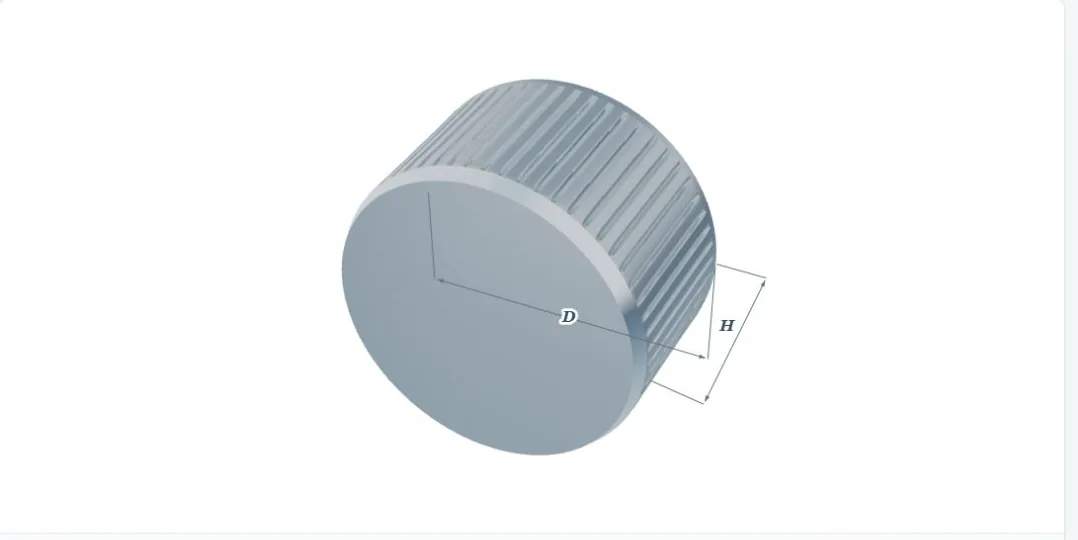

For N equally spaced flutes, angular spacing is Δθ = 360°/N. At axial position z, the circumferential arc pitch is p(z) = πD(z)/N, where D(z) is the reference diameter. The pitch decreases toward the smaller end even though the angular spacing remains constant. Arc pitch is different from groove width and from a straight chord distance.

Constant groove width can leave narrower crests at the small-diameter end. Thin crests may produce sharp edges or change disproportionately during deburring. Specify the reference section, groove count, crest and root profiles, groove depth direction and start/stop locations. A path following the cone’s generator is not identical to an axis-parallel tool movement. Symbols in the interactive geometry distinguish these features; actual dimensions depend on the mating shaft and product layout.

Turning datums and secondary operations

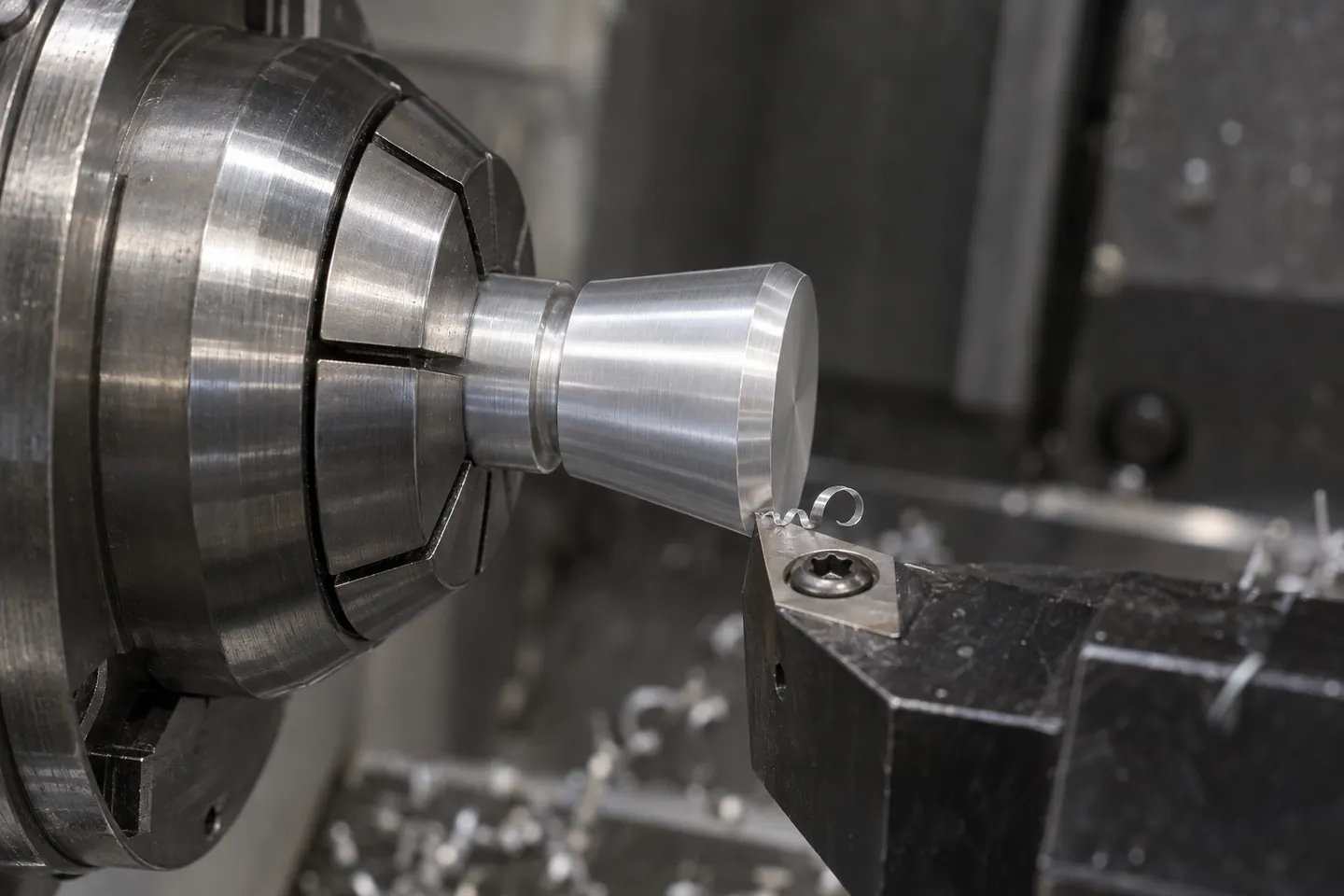

Turning efficiently links rotational features such as the outside diameter, taper, face, shoulders and a round bore. Axial flutes and the flat in a D-shaped bore require suitable non-axisymmetric operations. Their indexing datum and tool access must be planned with the turned features.

The installed knob rotates about its shaft interface. Establish the functional bore and seating face as the appropriate references, then control the outside and front face relative to them. Machining related features in one setup can reduce reclamping error, but does not guarantee final runout. After parting, a collet, soft jaws, process band or dedicated mandrel may be needed to relocate the part without crushing or marking finished flutes.

Alloy and material condition affect cutting, finish and mass. Aluminum offers a lightweight body with anodizing options; brass and stainless steel change the mass and machining requirements. A deep rear pocket reduces weight but also reduces wall stiffness. Form knurling after pocketing can distort a thin wall, while pocketing after fluting can complicate workholding. Choose the sequence around stiffness, datum transfer and protection of cosmetic surfaces.

Form knurling, cut knurling and indexed fluting

Form knurling displaces material plastically and can increase the outside diameter. It requires a compatible material, adequate support and control of deformation. Cut knurling removes material and changes the loading conditions. The finished pattern alone does not prove which process produced it.

Some conventional axial cut-knurling tool families are intended for cylindrical workpieces. Their suitability must not be assumed for a taper. Dedicated conical knurling arrangements or indexed milling with a C axis or dividing fixture may be appropriate, depending on the geometry. A limitation of one tool family is not a prohibition on all methods of machining tapered flutes.

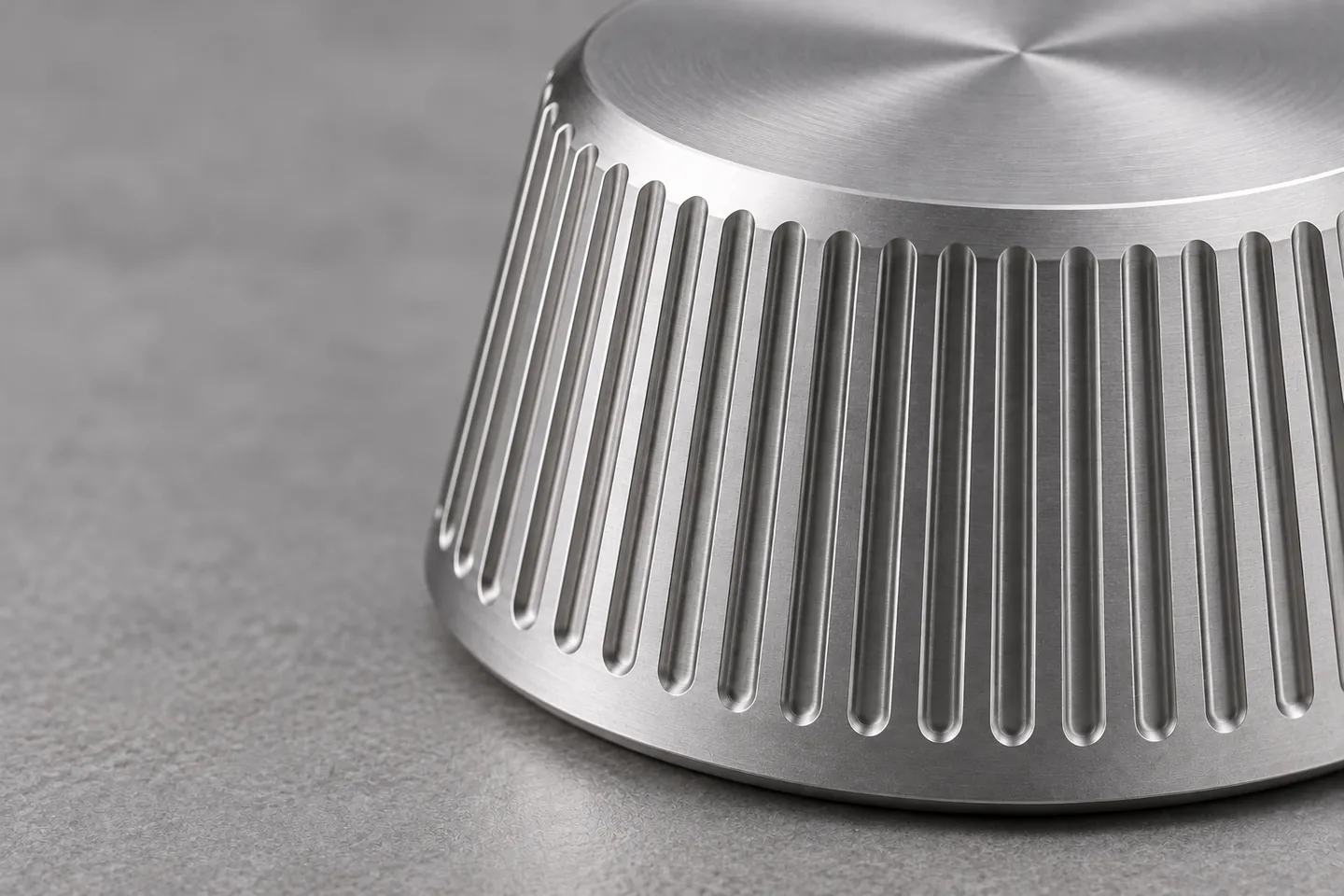

Indexed cutting provides control of individual groove positions and ends, but demands repeatable indexing, low tool runout, stable cutting edges and chip evacuation. Inspect the remaining crest at the small end and the consistency of groove termination. Grip depends on edge form, root geometry, direction of contact and final surface treatment, not simply on groove depth.

Bore geometry and axial retention

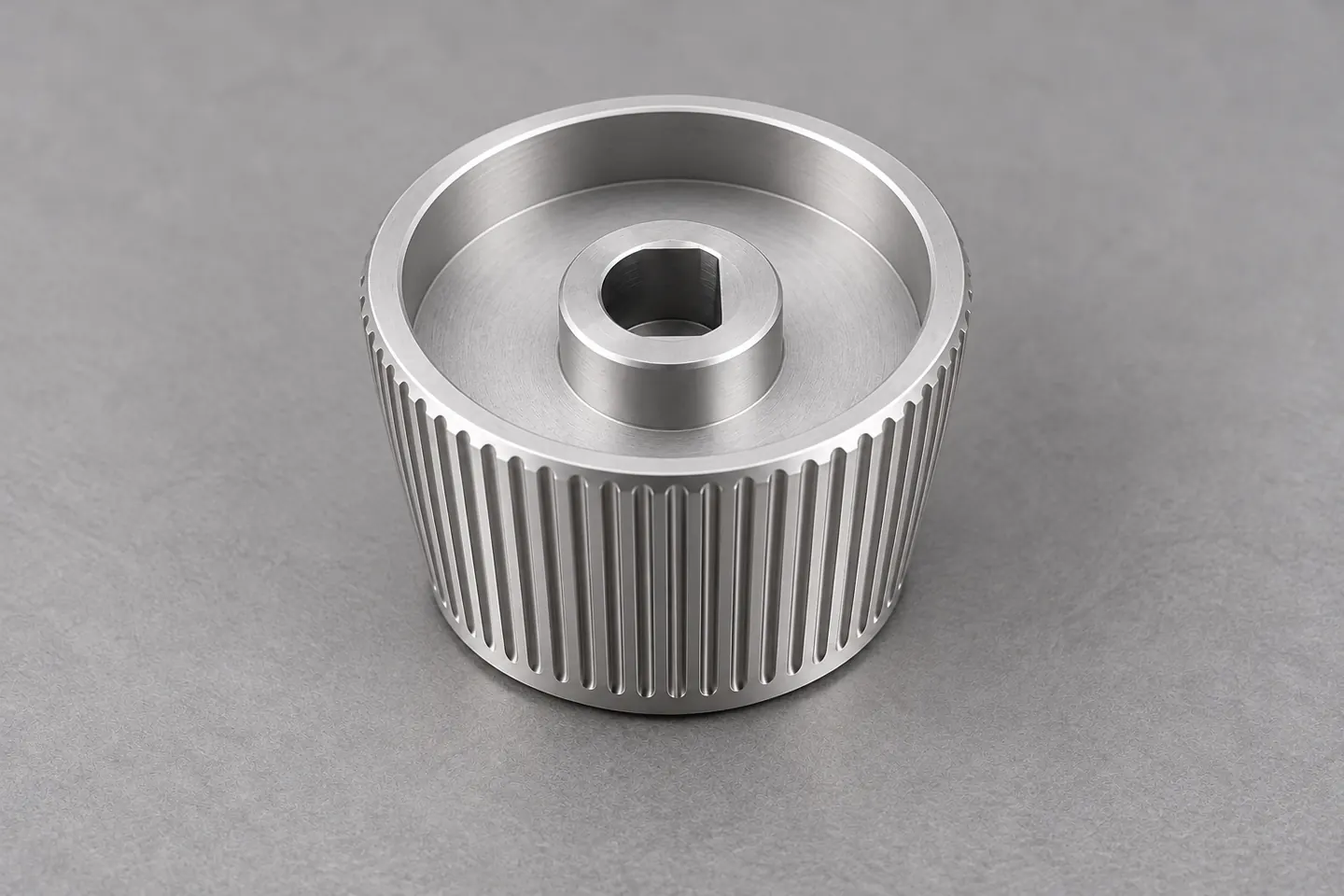

A D-shaped interface limits relative rotation through its noncircular geometry. It does not, by shape alone, prevent axial withdrawal. Retention must come from the selected fit, resilient insert, clamp or other fixing mechanism. Specify the bore diameter, flat location, engagement length, entry chamfer and blind-end clearance against the actual mating shaft drawing.

Broaching, slotting or milling may complete a D-shaped bore from a pilot opening that leaves material for the flat, subject to machine and geometry constraints. A full circular bore at the finished arc diameter would remove that material. A small blind bore also restricts tool entry, bottom clearance and chip removal. A separate insert can sometimes separate the demanding shaft interface from the cosmetic metal shell.

A side set screw introduces local contact and can affect centering. A split clamp or collet distributes contact differently, but its bore, slots, elastic movement and tightening arrangement still need design control. Press-fit or resilient interfaces require insertion and withdrawal force evaluation, temperature assessment and a plan for disassembly. Shaft cross-section and fixing method are not mutually exclusive categories.

Finishing and final dimensions

Color and gloss depend on alloy, material history, cutting texture, mechanical preparation and anodizing conditions. Specify the front face, chamfer and fluted surface separately where needed, and agree on finished reference samples. A color name or a single roughness value cannot define every visual and tactile requirement.

Anodizing converts aluminum to oxide and changes dimensions. Outward growth depends on the alloy and process; pretreatment can also remove material. Do not add the entire coating thickness outside the original surface or assume one universal growth ratio. A bore is affected at opposing walls. Define masking, final fit dimensions and post-treatment inspection before committing to production. Unplanned remachining changes both the coating and its boundary.

Deburring must soften objectionable edges without erasing the small crests or changing the intended pattern. Evaluate roughness, burrs, fine geometry and visual appearance as related but distinct acceptance items.

Panel installation and validation

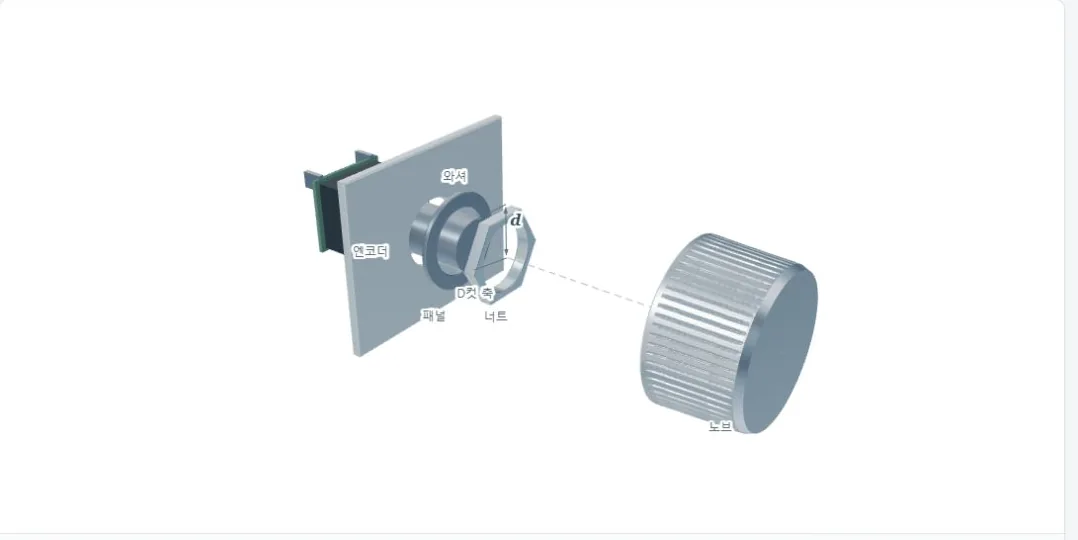

Panel thickness, bushing location, washers, nut, shaft projection and bore insertion depth determine axial position. Check the minimum clearance with assembly variation, shaft play and tilt included. For a push-switch control, enough clearance must remain through the intended switch travel so that the knob does not contact the panel prematurely and returns freely after release.

Insertion force, shaft push-pull strength, mounting-nut torque and operating torque are separate quantities. A shaft-strength rating is not a recommended assembly force. Provide support and an insertion stop consistent with the component supplier’s instructions, so loads are not transferred improperly into the mechanism or PCB joints. Projecting or heavy knobs also require attention to lateral transport impacts and packaging support.

Inspect the knob on a defined fixture and then on the actual shaft with the specified fixing conditions. Circular runout at a particular section, total runout across a surface and roundness are different characteristics. A stylus running across flute crests and roots includes the intended texture in its signal. Define a suitable smooth measurement band, contact method or form-measurement procedure.

Record temperature, speed, direction, insertion depth and fixing conditions when comparing torque. Separate initial breakaway, running resistance, detent-related variation and reversal clearance. Compare torque against angle and inspect panel contact rather than treating every periodic change as the same defect.

A production drawing should connect the mating shaft, panel stack, push function, fixing and removal method, material, flute definition and final finish. Allocate tolerances according to function. Validate assembly, operation, disassembly, repeated use and transport under product-specific criteria. The quality of the control emerges from this complete mechanical connection.
